    Bronze Gate Valve for Water

    What is a Bronze Gate Valve for Water?

    Definition and Function of Gate Valves

    A gate valve is a type of valve that controls the flow of a liquid or gas by lifting a gate (wedge) out of the path of the fluid. Gate valves are designed to provide a full bore, meaning the valve's opening is the same size as the pipe, minimizing flow restriction. They are primarily used for on/off service, meaning they are either fully open or fully closed, and are not suitable for throttling or regulating flow. When fully open, the fluid flows straight through the valve with minimal pressure drop. This makes gate valves ideal for applications where unrestricted flow is desired.

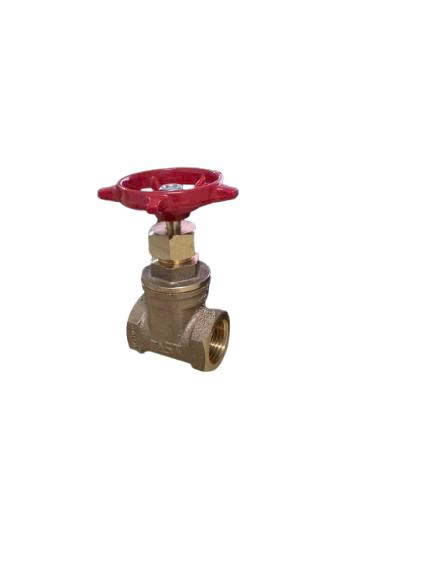

    Bronze gate valve for water

    Why Bronze is Used in Water Applications

    Bronze is a popular material for valves used in water applications due to its excellent corrosion resistance, especially in fresh water environments. Unlike iron or steel, bronze does not rust, and it is less susceptible to corrosion from mineral deposits commonly found in water. Bronze also contains copper, which has inherent antimicrobial properties, making it a good choice for potable water systems. Furthermore, bronze is relatively easy to machine and cast, allowing for the production of complex valve designs at a reasonable cost.

    Key Components of a Bronze Gate Valve

    A bronze gate valve consists of several key components:

    • Body: The main housing of the valve, typically made of bronze.
    • Gate (Wedge): The sliding element that controls the flow. It moves up and down to open or close the valve.
    • Stem: Connects the handwheel to the gate, transmitting the rotational motion into linear motion to move the gate.
    • Handwheel: Used to manually operate the valve by turning it to raise or lower the gate.
    • Bonnet: The cover that is bolted to the body, providing access to the internal components.
    • Packing: Seals the stem to prevent leakage.

    Advantages of Using Bronze Gate Valves in Water Systems

    Corrosion Resistance in Water Environments

    Bronze's inherent resistance to corrosion is a major advantage. In water systems, valves are constantly exposed to moisture and various chemical compounds. Bronze forms a protective oxide layer on its surface, preventing further corrosion. This is particularly important in environments where the water has a high mineral content or is slightly acidic.

    Durability and Longevity

    Bronze gate valves are known for their durability and long service life. The robust construction and corrosion-resistant properties of bronze ensure that these valves can withstand the rigors of continuous use in water systems. With proper maintenance, a bronze gate valve can provide decades of reliable service, reducing the need for frequent replacements.

    Suitability for Potable Water Systems (if lead-free)

    Many bronze alloys are suitable for use in potable water systems, provided they meet lead-free standards. Lead-free bronze alloys, such as those compliant with NSF/ANSI 61 and 372, are safe for drinking water applications. These alloys eliminate the risk of lead contamination, ensuring that the water remains safe for consumption. Before selecting a bronze gate valve for potable water, it is crucial to verify that it is certified lead-free.

    Applications of Bronze Gate Valves in Water Management

    Residential Plumbing Systems

    Bronze gate valves are frequently used in residential plumbing systems for main water shut-off valves, isolation valves for appliances (e.g., water heaters, washing machines), and irrigation systems. Their reliability, corrosion resistance, and suitability for potable water make them an excellent choice for these applications.

    Industrial Water Treatment Facilities

    In industrial water treatment facilities, bronze gate valves are employed to control the flow of water throughout the treatment process. They are used in pipelines, tanks, and filtration systems. Their corrosion resistance is especially valuable in environments where the water may contain chemicals or other contaminants. Examples include:

    • Water intake lines
    • Filtration system isolation
    • Chemical dosing lines

    Marine and Seawater Applications

    Bronze is highly resistant to corrosion from seawater, making bronze gate valves suitable for marine applications. They are used in boat plumbing, seawater cooling systems, and other marine water systems. The ability of bronze to withstand the corrosive effects of salt water ensures long-term reliability in these demanding environments. For example:

    • Ballast systems
    • Engine cooling
    • Sanitation systems

    Factors to Consider When Selecting a Bronze Gate Valve for Water

    Pressure and Temperature Ratings

    When selecting a bronze gate valve, it is essential to consider the pressure and temperature ratings. The valve must be able to withstand the maximum pressure and temperature of the water system. These ratings are typically stamped on the valve body. Exceeding these ratings can lead to valve failure and potential safety hazards. It's always better to choose a valve with ratings that exceed the system requirements.

    Valve Size and Connection Type

    The valve size must match the pipe size to ensure proper flow and prevent pressure drops. Common valve sizes range from small (e.g., 1/2 inch) to large (e.g., 12 inches) or greater. The connection type (e.g., threaded, flanged, or soldered) must also be compatible with the existing piping system. Threaded connections are common for smaller valves, while flanged connections are often used for larger valves.

    Standards and Certifications (e.g., WRAS, NSF)

    Ensure that the bronze gate valve meets relevant industry standards and certifications. For potable water applications, look for valves that are certified to NSF/ANSI 61 and 372, indicating that they are lead-free and safe for drinking water. In the UK, WRAS approval is required for valves used in contact with potable water. These certifications provide assurance that the valve has been tested and meets specific performance and safety requirements.

    Here's a quick reference table:

    Standard/Certification Description
    NSF/ANSI 61 Ensures the valve meets stringent public health standards for drinking water.
    NSF/ANSI 372 Confirms the valve is lead-free.
    WRAS Required in the UK for valves in contact with potable water.
